Home Data Storage CyberData Series

Product Model

ORICO-CF56-Pro
CPU

Intel Core i5-1240P (4.4GHz, 12 Cores, 16 Threads, 12MB Intel® Smart Cache, TDP 28W, TDP Down 20W)
RAM Memory

16GB DDR5 , Expandable up to 96GB
Flash Memory (System Disk)

128GB SSD
Max. Storage

168TB (5-bay for 2.5"/3.5"SATA HDD/SSD, 6 M.2 SSD slots)
Support Drive Capacity

24TB SATA HDD Per Bay, 8TB M.2 SSD Per Bay
Internal Interface

SATA 3.0 6Gbps x5, M.2 M-Key NVMe 2280 x6, DDR5 SO-DIMM x2
External Interface

2* 40Gbps USB4(Support Thunderbolt 4/3), 1* USB3.2 Gen2 USB-A (10Gbps), 1* USB3.2 Gen2 USB-C (10Gbps), 2* USB2.0 (480Mb/s)
LAN Port

10GbE*2 (Aggregated up to 20GbE)
HDMI

1* HDMI 2.1 (8K)
DP

1* DP 1.4a (8K)

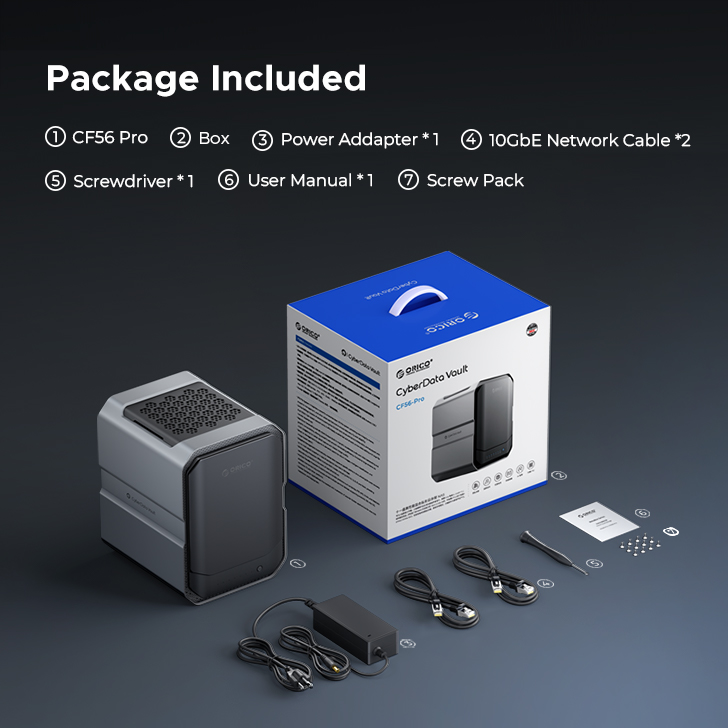

Package Included

1* Power Addapter, 2* 10GbE Network Cable, 1* Screwdriver, 2* Screw Pack, 1* User Manual
