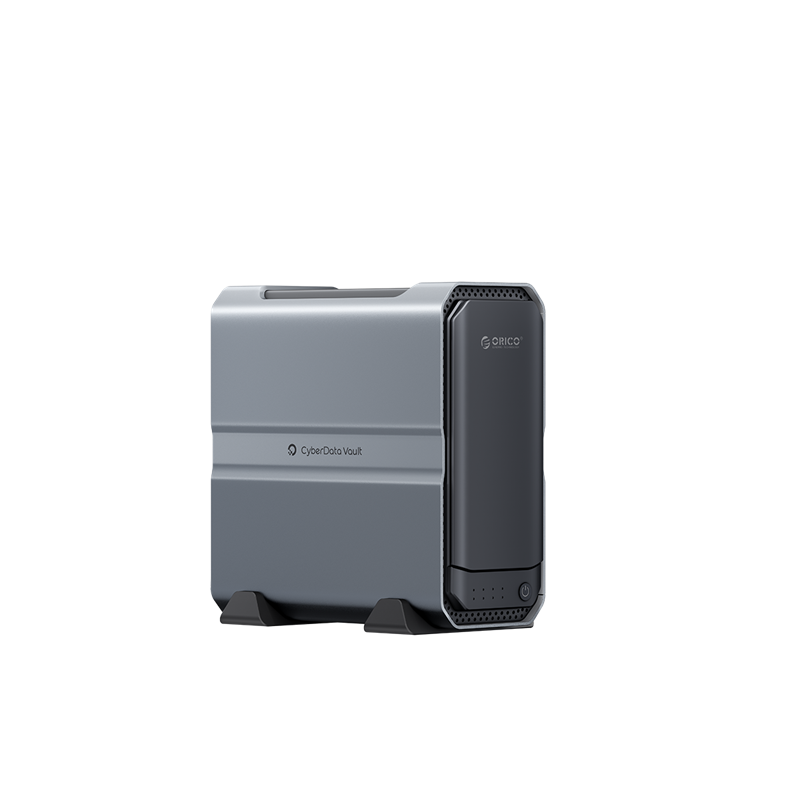

CyberData Vault 6Bay All-Flash NAS - Now Live on Kickstarter

Product Model

ORICO-CF6
CPU

Intel Core N305 (3.8GHz, 8 Cores, 8 Threads, 6MB Intel® Smart Cache, TDP 15W, TDP Down 9W)
RAM Memory

16GB DDR5 , Expandable up to 64GB
Flash Memory (System Disk)

eMMC 64GB
Max. Storage

48TB (6 m.2 SSD slots)
Support Drive Capacity

8TB M.2 SSD Per Bay
RAID

BASIC, RAID 0/1/5/6/10
Internal Interface

M.2 NVMe 2280 x6, DDR5 SO-DIMM x1

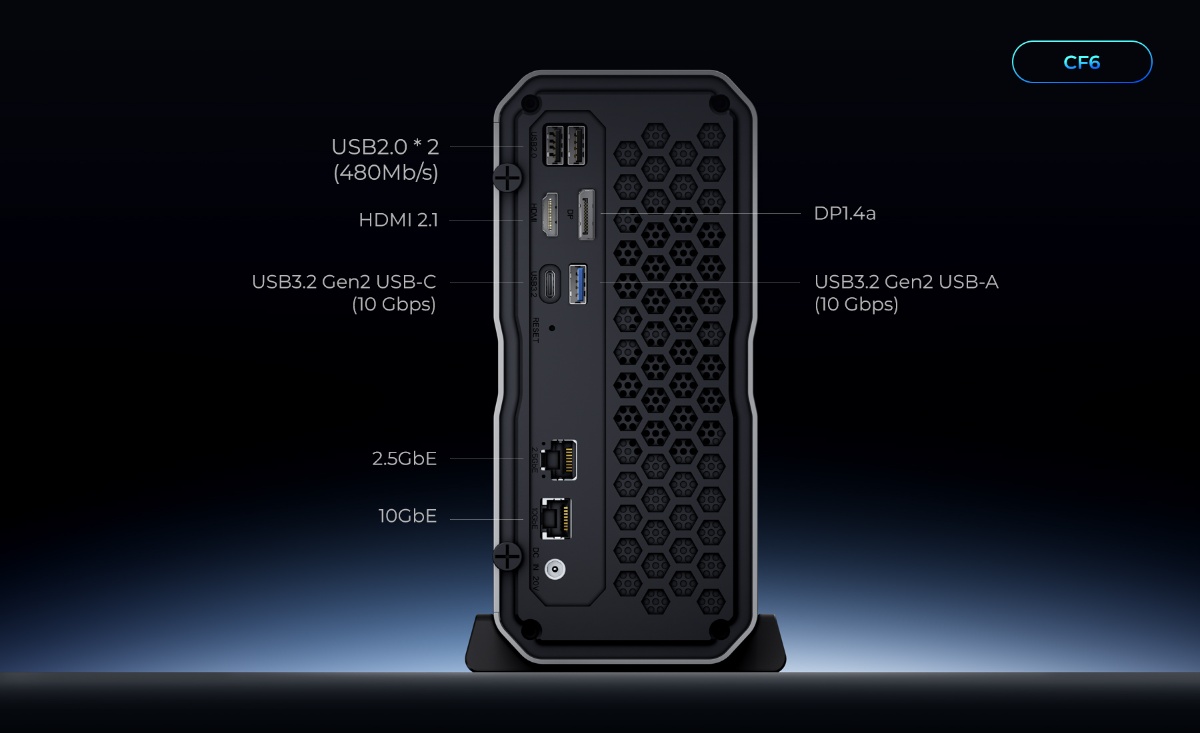

External Interface

1* USB3.2 Gen2 USB-A (10 Gbps), 1* USB3.2 Gen2 USB-C (10 Gbps), 2* USB2.0 (480Mb/s)
LAN Port

2.5GbE*1, 10GbE*1
HDMI

1* HDMI2.0 (4K)
DP

1* DP1.4
Package Included

1* Power Addapter, 2* 10GbE Network Cable, 1* Screwdriver, 2* Screw Pack, 1* User Manual
Dimension

197(L)*88(W)*198(H)mm
